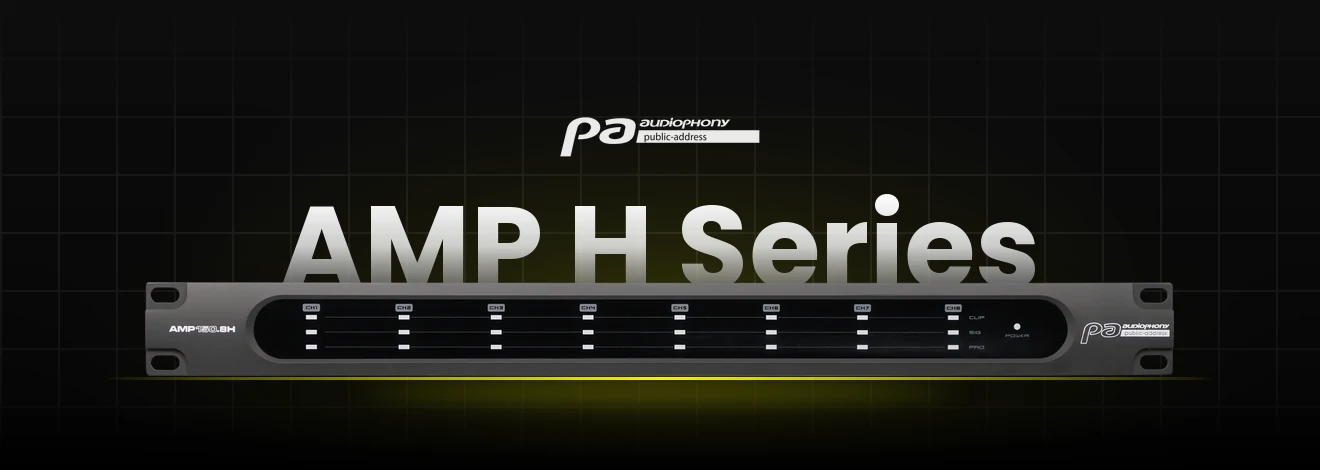

Eight zones, a single 1U unit.
The AMP150.8H answers a precise need: covering a large number of small independent zones without multiplying amplifiers. Schools, multi-aisle retail, office buildings with many rooms or corridors — wherever the number of zones matters more than the power per zone, the AMP150.8H packs eight amplified channels into a single 1U rack weighing 5 kg.
Eight channels, full control.
Each channel delivers 150 W on a 70 V or 100 V line, with an independent voltage selector per channel at the rear. Level trim is per channel, also at the rear, for precise calibration of each zone without touching the others. Note: the 150 W per channel figure applies when the unit is not fully loaded; with all eight channels driven at once, each one delivers up to 135 W RMS. Three LED indicators per channel (signal, clip, protection) give an immediate visual read on the state of each line, in service as in maintenance.
Measurable sound quality.
THD+N below 0.1 % keeps the signal faithful even at full output, with no audible colouration on speech or on music. A signal-to-noise ratio above 95 dB lets silence stay silent between two announcements. A damping factor above 200 keeps the driver under control for a well-defined result, including at the far end of a 100 V line.
Connections and integration.
Eight inputs and eight outputs on Euroblock connectors, in the same format as the rest of the AMP H Series: an installer who knows one model of the range knows them all. Short-circuit, open-circuit, thermal, limiter, ultrasonic and radio-frequency protection as standard. Fan cooling, AC 220 – 240 V power supply.
The AMP150.8H is part of the Audiophony PA AMP H Series, available with 1, 4 or 8 channels, from 150 to 500 W per channel.
Key features:
• 8 independent channels, 70 V / 100 V selection on each channel
• 150 W per channel (8 × 135 W with all channels driven)
• Per-channel level trim at the rear
• Signal, clip and protection indicators on each channel
• Class D, 1U 19″ format
Technical specifications:
• Power at 100 V: 150 W, 8 × 135 W (74 Ω, all channels driven)
• Power at 70 V: 150 W, 8 × 135 W (36 Ω, all channels driven)
• Input sensitivity: 0.9 – 1.1 V (0 ±1 dBV)
• Input impedance: 20 kΩ balanced / 10 kΩ unbalanced
• Voltage gain (100 V): 40 dB
• Frequency response: 100 Hz – 15 kHz
• Signal-to-noise ratio: > 95 dB
• THD+N: < 0.1 %
• Damping factor: > 200
• Output voltages: 70 V / 100 V
• Power circuit: Class D switch-mode supply
• Power supply: AC 220 – 240 V, 50 / 60 Hz
• Protection: short circuit, open circuit, thermal, limiter, ultrasonic and radio frequencies
• Indicators: signal (green), clip (red), power (green), protection (red)
• Connections: inputs and outputs on Euroblock connectors
• Controls: ON/OFF switch and level trims at the rear, voltage selectors at the rear
• Cooling: fan cooled, 62.5 dB at 1 m
• Dimensions: 483 × 44 × 360 mm, 19″ 1U
• Net weight: 5 kg
