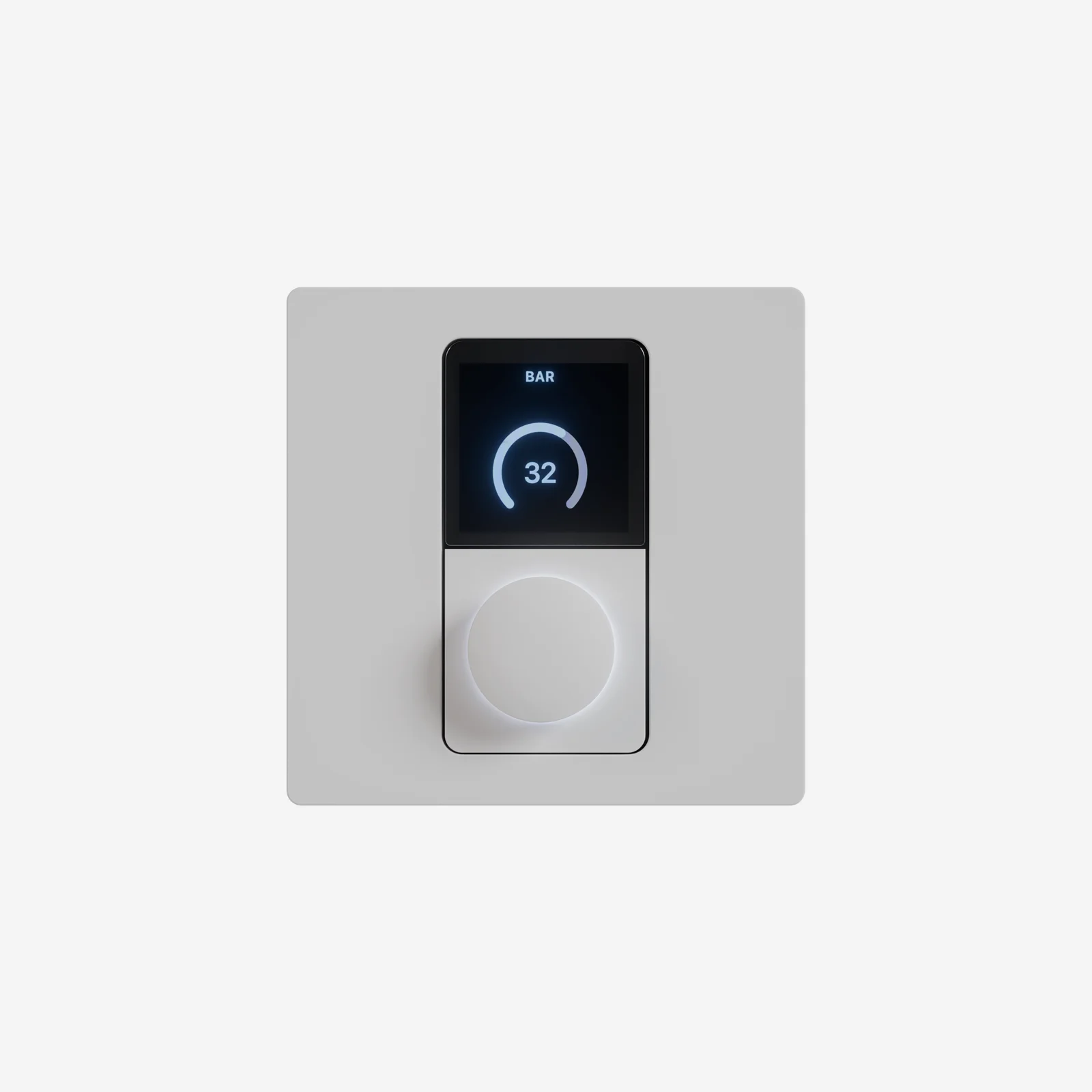

Wall-mounted controller for AIO matrices
Give your users elegant control over their soundscape with the AioCTLw, the wall-mounted controller designed to intuitively control one or more zones of your AIO matrix. In a compact format (87x87x43mm) compatible with standard flush-mounted boxes, this controller fits discreetly into any environment: bar, restaurant, hotel, auditorium, retail outlet. Its luminous display and click-activated rotary knob provide a fluid user experience accessible to all, with no training required. Elegant matt white finish. Also available in black.
Simplicity and ease of use
The AioCTLw provides three essential functions: zone volume control, audio source selection and instant mute. The uncluttered interface is self-evident: no complex menus, no risk of unintentional system adjustment. The end-user controls his room in a matter of seconds, while the installer retains total control via the AIO matrix web interface. Configurable access restrictions protect the system against tampering.
Ultra-simplified installation
Powered by PoE (Power over Ethernet), the AioCTLw installs with a single network cable, eliminating the need for a separate power supply and drastically simplifying wiring. Compatible with standard flush-mounting boxes (87x87mm), it’s as easy to install as a conventional switch. One controller can control one or more zones of a single AIO amplifier, offering total flexibility in the design of your multi-zone installation.
Technical specifications
- Compatibility: AIO matrices (Aio4125, Aio8125, Aio4500)
- Controls: Volume by zone, source selection, mute
- Zones: 1 or more zones of a single AIO amplifier
- Interface: Illuminated display, click-activated rotary knob
- Power supply: PoE (Power over Ethernet)
- Dimensions: 87 x 87 x 43 mm
- Weight: 120 g
- Mounting: Compatible with standard flush-mounting boxes
- Finish: Matt white
- Other version: Available in matte black (AioCTLb)
